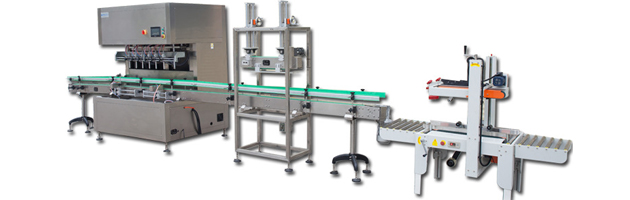

Features The automatic milk bottle filling machine drives the piston synchronously through the servo motor to achieve the filling effect, through the operation and control of PLC, man-machine interface, realize linear stepless speed regulating transmission, can control the filling capacity arbitrarily. The glass milk bottle filling machine can be equipped with pneumatic capping or other capping device, then form filling line. The automatic milk bottle filling machine adopts unique design, complete function, stable performance, excellent quality and beautiful shape.

Milk Bottle Filling Machine Video:


Automatic Milk Bottle Filling Machine Technical Characteristics:
1. Unique, multi - head and suction system designed for zero leakage, ensure the production site and finished products are free from contamination.
2. Using the man-machine interface touch control screen, easy to adjust the parameters and test the functions.
3. This automatic milk bottle filling machine with high filling accuracy, ensure the filling accuracy is better than the national average, the integrated filling error is no more than 1%.
4. The height of the filling head can be adjusted according to the height of the bottle, the adjustment method is simple, quick and accurate.
5. The filling nozzle can be filled in the form of umbrella or straight flush, thus applicable to different liquid filling, umbrella filling is suitable for foaming materials.
6. Stepless regulator can adjust the speed of stainless steel conveyor belt, flexible coordination to make multi-process work synchronously.
7. Pneumatic capping device has wide applicability, can suit for different size and shape cap, the rotating head can be replaced to accommodate a variety of caps.
8. Main pneumatic and electrical components are all domestic well-known accessories, ensure stable system performance and excellent quality.
9. The glass milk bottle filling machine has the function of stop and force stop, facilitate emergency handling in any situation, if a failure occurs, the immediate stop function can be used.

About Milk Bottle Filling Machine Price:
Because there are different models for sale in our company, so the price of each model is also different, the actual price is subject to the model selected by the customer.

Our company regards quality as the life of the enterprise, establish a strict quality assurance system, take "quality to survive, service to win customer" as business philosophy. Our company can provide you with milk, edible oil, lubricating oil, beverage, liquor and other complete filling equipment, washing equipment. You can also rely on the company's technical advantages to carefully design filling equipment. If you have any question and need about automatic milk bottle filling machine, please contact us in time.



Technical Data

Model	YT6G
Filling Nozzle	6
Capacity	20-60bottles/min
Filling Accuracy	≦±1﹪
Voltage	380V 50Hz
Electric Current	3A
Power	500W
Atmospheric Pressure	0.4－0.6Mpa
Filling Capacity	100-1000ml
